Model:     FSC-1717VN



• Introduction

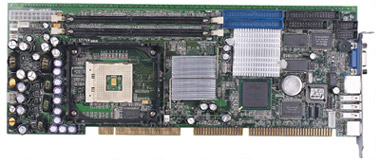

Socket 478 PICMG Full Size CPU Card with VGA/LAN interface





• Features

800MHz system bus, support Socket 478 Pentium 4 CPU and next PRESCOTT CPU
Intel 875P chipset,2 DDR 266/333/400 dual channels
HT technology support
Powerful fuction with ATI RADEON 9200 8X Graphics accelerated controller, 64MB display memory
1 10M/100Mbps Ethernet LAN controller,RJ-45 interface
2 SATA IDE interfaces,to 150Mbps transmit velocity
5 USB 2.0,to meet more and more requestions of peripheral equipments



• Specifications

Bus type: Completely compatible with PICMG 2.0 PCI/ISA bus standard
Processor: 800 MHz system bus, support Socket 478 Pentium 4 CPU and next PRESCOTT CPU
System chipset:Intel 875P+ICH5R chipset
System memory:2 184-pin DDR DIMM slots, support dual channels,up to 2GB system memory
BIOS: AMI BIOS ,support ACPI power managment function
On-board video:ATi RADEON 9200 8X 2D/3D graphic controller, 64MB DDR display memory, frequency up to 200Hz; Solution up 2048¡Á1536 32, support Direct¡Á8.1, DirectX9.0 and OpenGL 1.3 & Pentium 4 SSE, Inside HDTV decoder & hardware penetrate technology, make the quality of the graphic more clearly and frequently.

On-board LAN: Intel 10M/100Mbps Ethernet LAN,RJ-45 interface
IDE controller:2 ATA 33/66/100 channels
Series IDE: 2 SATA IDE 150Mbps
Multi I/O interfaces: 1 FDD£¬5 USB£¬1 parallel£¬2 RS-232£¬1 IrDA£¬1 PS/2 keyboard/mouse interfaces
Watch Dog:256 level programmable, 1s/m resolution, time-out interrupt or system reset programmable
Hardware Monitoring:detect working power£¬CPU temperature and fans rotate speed primary
Power supply:+5V +12V£¬support AT/ATX
Dimension:338mm-122mm
Operation Temperature: 0°--60°
Relative Humidity:5%--90%£¬Non-condensing
