Model: FSC-1611VD4N

Introduction

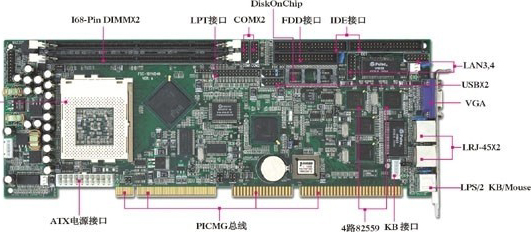

Socket 370 PICMG Full-size CPU Card, with VGA/SSD/4LAN

FSC-1611VD4N designs with INTEL 810E system chipset which conforms with PICMG full-size industrial motherboard standard, FSC-1611VD4N supports the latest Socket 370 66MHz/100MHz/133MHz processor. Apart from the common used

Features

Socket 370 configuration, support 66/100/133MHz FSB CPU
Intel810E chipset, stable and secure
Introduce exclusively mainboard integrated four Intel 82559 Ethernet controller
Integrate AGP hardware video acceleration
Hardware monitor
On-board ATX power supply interface

Specifications

Bus type	PICMG PCI/ISA bus
Processor	Support Socket 370 PPGA or PCPGA Celeron/Intel®Pentium®III/ VIA Cyrix-¢ó
System Chipset	Intel 810E support 66MHz/100MHz/133MHz FSB
System Memory	168pin 2¬up to 512MB
BIOS	Latest Award Modular BIOS Ver6.0
On-board video	AGP graphic acceleration controller integrated within the chip
On-board LAN	Four Intel 82559 10M/100Mbps Ethernet controller, RJ-45 interface
PCI IDE	Dual UltraDMA 33/66 IDE controller, support four IDE devices
Multi I/O interface	One FDD, two USB, one parallel port, two RS-232, one IrDA infrared interface, one PS/2 keyboard/mouse interface
Watchdog timer	16 level programmable, 0~30s
Hardware monitor	Winbond W83627 system status monitor, voltage, temp, and fan speed.
Solid state disk	Solid state disk M-system DiskOnChip flash disk
Power supply	+5V-+12V£¬Support AT/ATX Power supply
Dimension	338mm-122mm
Operation Temperature	0~60°
Relative Humidity	5%~90%:¬non-condensing
